ImageMaster® ENDO PRO
Image quality testing of endoscopes
In the production of medical endoscopes, the reliable quality control of the imaging quality is essential. With its fully automated, software-controlled measuring process, the ImageMaster® ENDO PRO ensures efficient and operator-independent quality control in the production of endoscopes.
Fully automated
With the ImageMaster® ENDO PRO, all relevant measurement parameters can be measured automatically in a single measurement process.
Efficient
The device enables efficient quality control in production including the issue of a measurement certificate. In the serial measurement of the same endoscope type the measuring time for all measuring parameters is 4 minutes. Taking the set-up time into account, at least 12 endoscopes per hour can thus be measured.
Variable
The highly flexible system measures endoscopes with an eye piece as well as those with a C-mount camera adapter. The motorized object generator allows a quick setup of various endoscope types.
Products

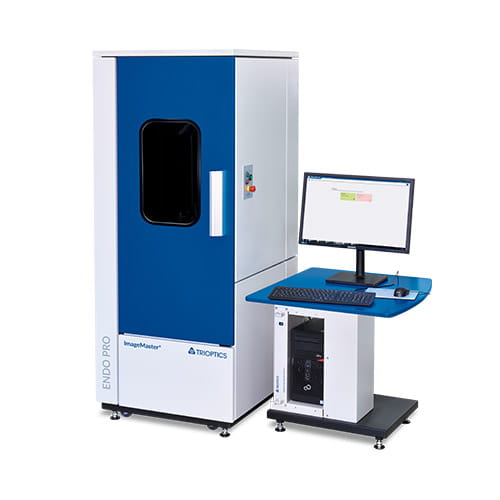

ImageMaster® ENDO PRO
The following measuring parameters can be measured:
- MTF on-axis and off-axis
- Direction of view (DOV)
- Field of view (FOV)
- Apparent field of view (AFOV)
- Distortion
- Magnification
- Diopter
- Image runout
- Optional: Vignetting, Lighting
Software

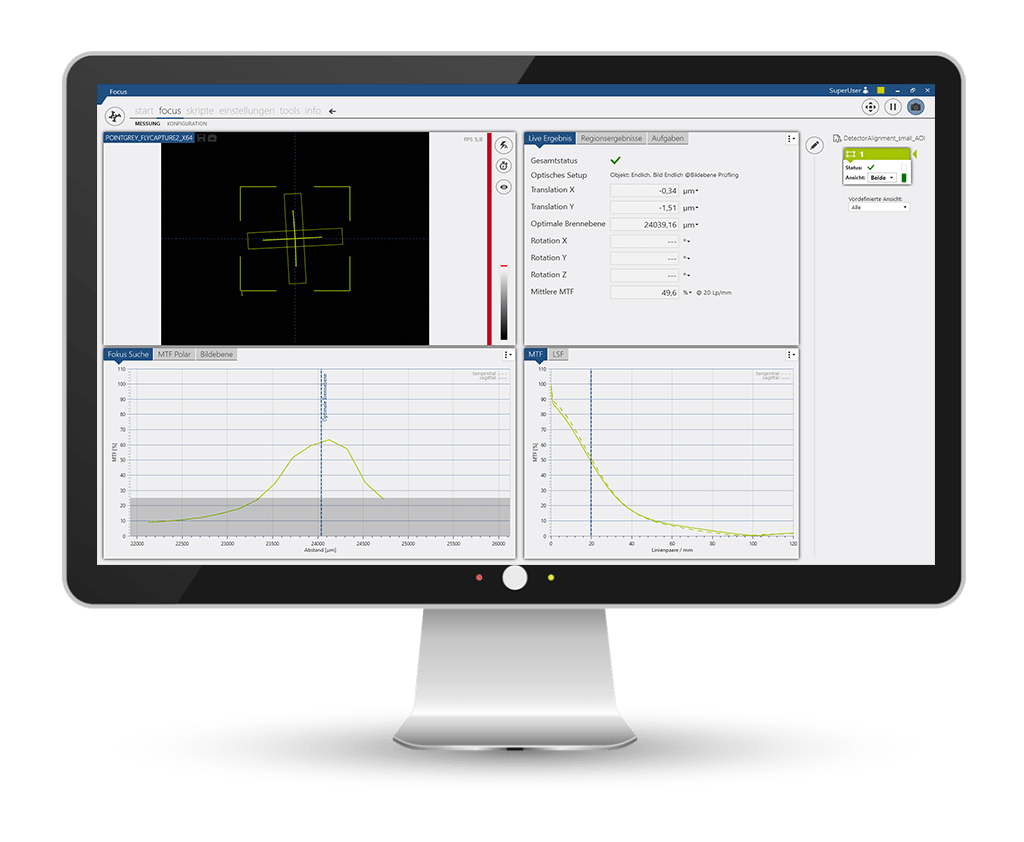

ProCam® for ImageMaster® ENDO PRO
- The software ProCam® consists of various elements for fully automatic alignment:
- With the integrated script tool, the measurement and alignment processes can be adjusted easily to match the specific requirements of customers and equipment
- Storage of the measurement results in a database to allow complete traceability and extensive data analysis
- Barcode scanner implementable Output of the measurement report in PDF and Excel format
- A fully automated alignment of the detector and the reticle to the endoscope is performed by means of high-precision image analysis algorithms
- User administration with different access rights
